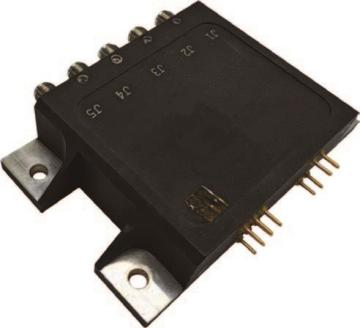

Product Features
● DC to 22 GHz (RF interface SMA-F)
● Up to 40 GHz (RF interface SMK-F)
● Available in horizontal mounting type
● Solder pin type or low-frequency connector type low-frequency interface is available.
(electrical connector options: D-Sub, J30J, etc.)
● Telemetry indication function is available.
● Diode deactivation function available
● Weight: 100 g minimum
RF Performance Indicators
DC ～ 22GHz（SMA-F Interface接口） |
频率（GHz） Frequency (GHz) | DC ～ 4.2 | 4.2 ～ 10.7 | 10.7 ～ 12.75 | 12.75 ～ 14.5 | 14.5 ～ 22 |
电压驻波比 Voltage standing wave ratio | ≤ 1.10 | ≤ 1.15 | ≤ 1.20 | ≤ 1.25 | ≤ 1.33 |
插入损耗（dB） Insertion loss (dB) | ≤ 0.12 | ≤ 0.20 | ≤ 0.25 | ≤ 0.30 | ≤ 0.35 |
隔离度 Isolation degree | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 65 | ≥ 65 |
电磁泄露（dBi） Electromagnetic leakage (dBi) | ≥ 75 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 |
连续波功率耐受（W） Continuous wave power tolerance (W) | 额定功率 1）+20% Rated power 1)+20% |
微放电（W） Micro discharge (W) | 额定功率 +6dB 脉冲功率 2） Rated power+6dB pulse power 2) |
17.5 ～ 40GHz（SMK-F Interface接口） |
频率（GHz） Frequency (GHz) | 17.5 ～ 21.5 | 21.5 ～ 27.5 | 27.5 ～ 31 | 31 ～ 40 |
电压驻波比 Voltage standing wave ratio | ≤ 1.35 | ≤ 1.45 | ≤ 1.55 | ≤ 1.65 |
插入损耗（dB） Insertion loss (dB) | ≤ 0.40 | ≤ 0.50 | ≤ 0.60 | ≤ 0.70 |
隔离度 Isolation degree | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 |
电磁泄露（dBi） Electromagnetic leakage (dBi) | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 |
连续波功率耐受（W） | 额定功率 1）+20% Rated power1)+20% |
微放电（W） Micro discharge (W) | 额定功率 +6dB 脉冲功率 2） Rated power+6dB pulse power 2） |
1）Rated power: can be evaluated according to user needs;
2）Pulse power: can be evaluated according to user needs, with a duty cycle of 1% to 5% and a period of 10ms.
schematic
Positive pulse, negative pulse and independent pulse control methods can be provided; control terminal and telemetry terminal dual-point, dual-wire control methods can be provided.

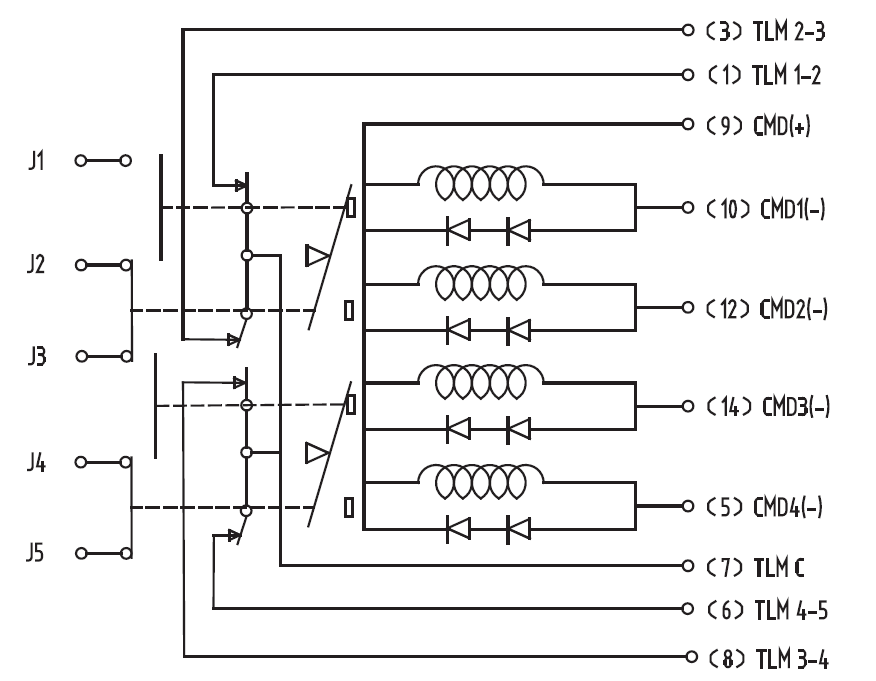

共负极 Negative Puls |  |

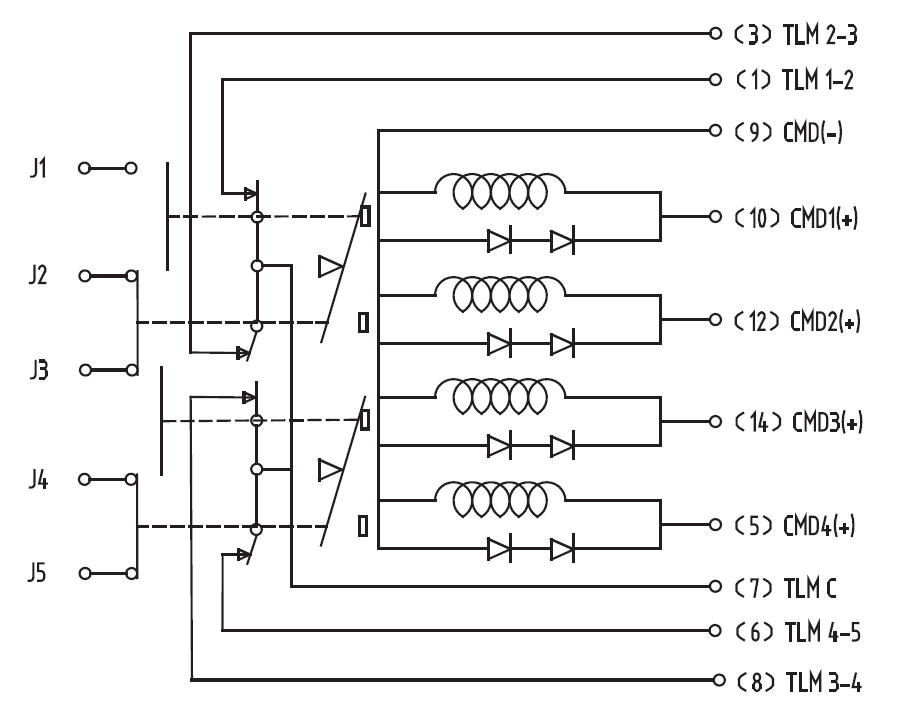

共负极 Negative Pulse |  |

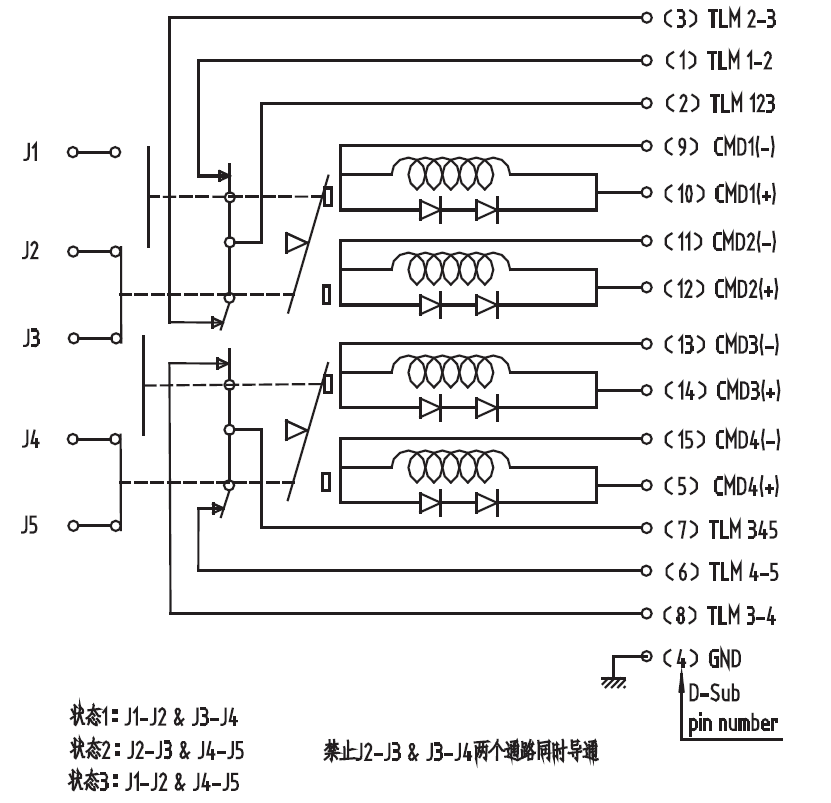

独立控制 Independent Pulse |  |
